INDIAN PURSUIT ELITE SPECIFICATIONS
Find specifications below for the 2023 Indian Pursuit Elite Motorcycle. Specs include displacement, engine type, torque, fuel capacity, seat height, wheelbase, height, weight, length, brakes, suspension, gauges, color options and standard equipment.
Engine & Drivetrain
Desplazamiento
1,768 c³ (108 in³)
Diámetro x recorrido
108 mm x 96.5 mm (4.251 in x 3.799 in)
Escape
Doble escape dividido con resonador
Potencia
122 HP
Relación de compresión
11.0:1
Relación de velocidades (1.ª)
10.169:1
Relación de velocidades (2.ª)
6.933:1
Relación de velocidades (3.ª)
5.151:1
Relación de velocidades (4.ª)
4.105:1
Relación de velocidades (5.ª)
3.508:1
Relación de velocidades (6.ª)
3.017:1
rpm de torque máximo
3800 rpm
Sistema de inyección electrónica de combustible
Inyección de combustible de bucle cerrado / diámetro doble de 52 mm
Tipo de motor
Liquid-cooled PowerPlus
Torque pico
128 lb-ft
Transmisión/clutch accionado
Húmeda, multiplacas, asistida
Transmisión/diferencial
2.379:1
Transmisión/tren de potencia principal
Clutch húmedo para transmisión por engranes

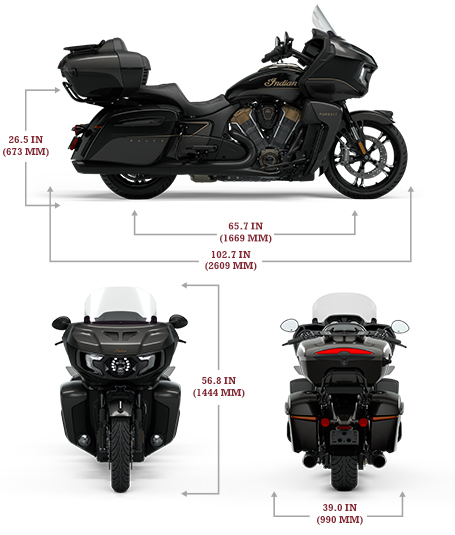

Dimensions
Altura de los asientos
672 mm (26.5 in)
Altura libre desde el suelo
5.4 in (137 mm)
Altura total
1,442 mm (56.8 in)
Ancho total
990 mm (39 in)
Ángulo de inclinación
31°
Capacidad de combustible
22.7 l (6.0 gal)
Distancia entre ejes
1,669 mm (65.7 in)
Longitud total
102.7 in / 2609 mm
Peso bruto del vehículo (GVWR)
628 kg (1,385 lb)
Rastrillo/sendero
25° / 150 mm (5.9 in)
Weight (As Shipped / Running Order)
882 lbs (400 kg) / 917 lbs (416 kg)
Brakes
Frenos delanteros
Dual / 320mm Semi-Floating Rotor / 4 Piston Radial Caliper
Frenos traseros
Single / 298mm Floating Rotor / 2 Piston Caliper
Tires / Wheels
Llantas Delanteras
Metzeler Cruisetec 130/60B19 66H
Llantas Traseras
Metzeler Cruisetec 180/60R16 80H
Rueda Delantera
5 Spoke Precision Cut 19 in x 3.5 in
Rueda trasera
5 Spoke Precision Cut 16 in x 5 in
Suspension
Diámetro del tubo de la horquilla delantera
43 mm
Recorrido delantero
130 mm (5.1 in)
Recorrido trasero
114 mm (4.5 in)
Suspensión frontal
Horquilla telescópica invertida
Suspensión trasera
Fox Single Shock w/Electronically Controlled Hyd Adjust/4.5" (114mm)
Features
Color / Graphics
Super Graphite Metallic / Black Metallic with Shadow Bronze Accents
Garantía de fábrica
2 años, millas ilimitadas
Gauges
Fairing-mounted instrument cluster featuring analog speedometer and tachometer with fuel gauge, range, odometer and current gear. 15 LED telltale indicators; cruise control enabled, cruise control set, neutral, high beam, turn signal, ABS, check engine, low tire pressure, battery, low fuel, security system, low engine oil pressure and MPH or km/h unit designation.
Infotainment
7 in touchscreen powered by RIDE COMMAND: Model year 2023 bikes include a complimentary 1-year trial of RIDE COMMAND+ (after which, fees apply) which includes features like live weather/traffic, intuitive destination search, vehicle health and vehicle locator. 7 in touchscreen display with real-time clock; ambient air temperature; heading; audio information display; map/navigation; Bluetooth® status for phone and headset; vehicle status (tire pressure, voltage, engine hours, oil change); vehicle info (speed, fuel range, RPM, gear position); current ride data (distance, moving time, stop time, altitude, altitude change); trip meters; ride mode selection; screen brightness; vehicle trouble code readout; Apple CarPlay® integration.
Lights
LED lighting including Pathfinder Adaptive LED Headlamp, Integrated lower fairing lights, LED Saddlebag Lights
Standard Equipment
Smart Lean Technology; Electronically Adjustable Rear Suspension Preload; Heated Seat; Integrated Driving Lights in Lower Fairing; Lower Fairing Storage; 7 in touchscreen powered by Ride Command with Navigation and Apple CarPlay integration; Selectable Ride Modes; Rear Cylinder Deactivation; Cruise Control; Tire Pressure Monitoring; Remote-locking Hard Saddlebags & Trunk; 36+ gallons of Storage; Highway Bars; Select Floorboards; Adjustable Passenger Floorboards; Brembo® brakes; ABS; Keyless Ignition; Chassis Mounted Fairing; Power Windshield; Adjustable Fairing Air Flow Vents; Heated Grips; Backlit switchcubes; Full PowerBand Audio System with AM/FM, Bluetooth®, USB, Smartphone Compatible Input, and Weatherband; 12V Charging Port
122
Horsepower
128 ft-lbs
Torque
Electronic Adjustable
Rear Preload
