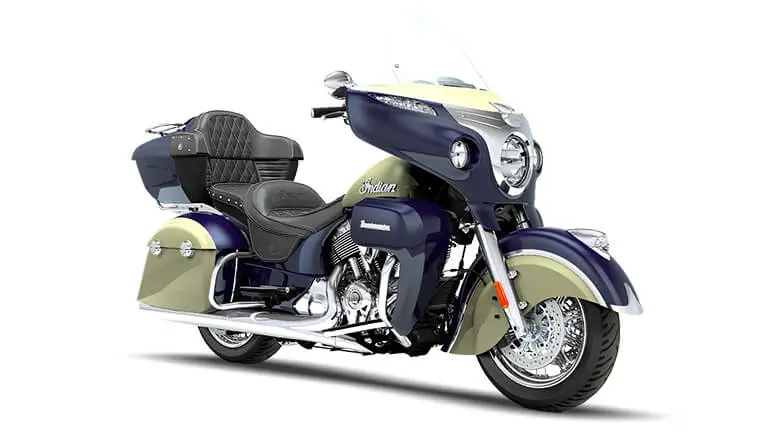

Indian Roadmaster Springfield Blue and Ivory Cream

Engine & Drivetrain

Bore x Stroke
3.976 in x 4.449 in (101 mm x 113 mm)
Compression Ratio
9.5:1
Displacement
111 cu in (1,811 cc)
Drive/Driven Clutch
Wet, multi-plate
Electronic Fuel Injection System
Closed loop fuel injection / 54 mm bore
Engine Type
Thunderstroke 111
Exhaust
Split Dual Exhaust w/ Cross-over
Gear Ratio (1st)
9.403 : 1
Gear Ratio (2nd)
6.411 : 1
Gear Ratio (3rd)
4.763 : 1
Gear Ratio (4th)
3.796 : 1
Gear Ratio (5th)
3.243 : 1
Gear Ratio (6th)
2.789 : 1
Horsepower
N/A
Peak Torque
119 ft-lb (138.9 Nm)
Peak Torque RPM
3,000 rpm / 2,600 rpm
Transmission/Final Drive
2.2 : 1
Transmission/Primary Drive
Gear Drive Wet Clutch

Dimensions

Fuel Capacity
5.5 gal (20.8 L)
Ground Clearance
5.5 in (140 mm)
GVWR
1,385 lb (630 kg)
Lean Angle
N/A
Overall Height
58.7 in (1,491 mm)
Overall Length
104.6 in (2,656 mm)
Overall Width
39.4 in (1,000 mm)
Rake/Trail
25° / 5.9 in (150 mm)
Seat Height (Laden)
26.5 in (673 mm)
Weight (Empty Tank / Full of Fuel)
897 lbs / 929 lbs (407 kg / 421 kg)
Wheelbase
65.7 in (1,669 mm)

Brakes

Front Brakes
Dual / 300 mm Floating Rotor / 4 Piston Caliper
Rear Brakes
Single / 300 mm Floating Rotor / 2 Piston Caliper

Tires / Wheels

Front Tires
Dunlop® Elite 3 130/90B16 73H
Front Wheel
Cast 16 in x 3.5 in
Rear Tires
Dunlop® Elite 3 Multi-Compound 180/60R16 80H
Rear Wheel
16 in x 5 in

Suspension

Front Fork Tube Diameter
46 mm
Front Suspension
Telescopic Fork
Front Travel
4.7 in (119 mm)
Rear Suspension
Single Shock w/ Air adjust
Rear Travel
4.5 in (114 mm)

Features

Color / Graphics
Springfield Blue and Ivory Cream
Gauges
Fairing mounted instrument cluster featuring electronic speedometer, tachometer, and fuel gauge with odometer, dual tripmeters with distance and time, instantaneous and average fuel economy; fuel range; real-time clock; compass; ambient air temperature; gear position display; front and rear tire pressure; engine hours of operation; engine oil life percentage; average speed; battery voltage; radio information display; vehicle trouble code readout; heated grip level (if heated grips installed); and 15 LED telltale indicators: cruise control enabled, cruise control set, neutral, high beam, turn signal, ABS, check engine, low tire pressure, battery, low fuel, security system, low engine oil pressure and MPH or km/h unit designation
Infotainment
N/A
Lights
Pathfinder LED Lights (headlight, fog lights, turn signals, tail light trunk, tail light, trunk interior light, and war bonnet fender light)
Standard Equipment
ABS; Cast Aluminum Frame with Integrated Air-Box; Cruise Control; Driving Lights; Highway Bar; Keyless Start; Horizon Power Windshield; Desert Tan Genuine Leather Seats; Remote Locking Hard Saddle Bags; Remote Locking Trunk; Tire Pressure Monitoring; 200 Watt Stereo with AM/FM Bluetooth and Smartphone Compatible Input; Heated Rider & Passenger Seats; Heated Grips; Adjustable Passenger Floorboards; 37.6 Gallons of Storage
