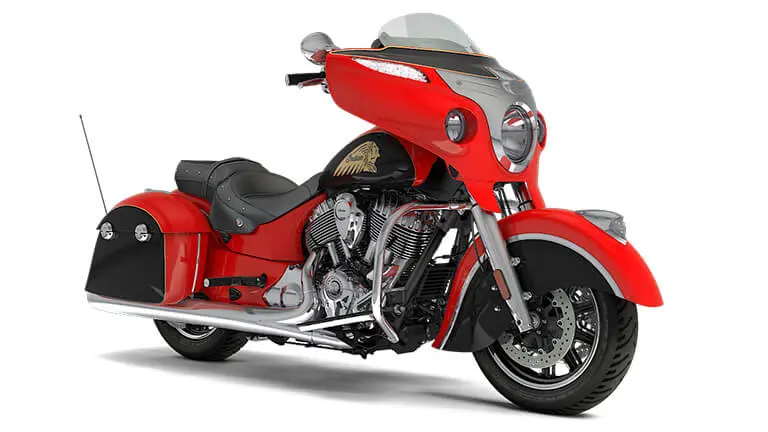

Indian Chieftain Wildfire Red over Thunder Black

Engine & Drivetrain

Bore x Stroke
3.976 in x 4.449 in (101 mm x 113 mm)
Compression Ratio
9.5:1
Displacement
111 cu in (1,811 cc)
Drive/Driven Clutch
Wet, multi-plate
Electronic Fuel Injection System
Closed loop fuel injection / 54 mm bore
Engine Type
Thunderstroke 111
Exhaust
Split Dual Exhaust w/ Cross-over
Gear Ratio (1st)
9.403 : 1
Gear Ratio (2nd)
6.411 : 1
Gear Ratio (3rd)
4.763 : 1
Gear Ratio (4th)
3.796 : 1
Gear Ratio (5th)
3.243 : 1
Gear Ratio (6th)
2.789 : 1
Horsepower
N/A
Peak Torque
119 ft-lb (161.6 Nm)
Peak Torque RPM
3,000 rpm
Transmission/Final Drive
2.2 : 1
Transmission/Primary Drive
Gear Drive Wet Clutch

Dimensions

Fuel Capacity
5.5 gal (20.8 L)
Ground Clearance
5.6 in (142 mm)
GVWR
1,385 lb (630 kg)
Lean Angle
N/A
Overall Height
54.6 in (1,388 mm)
Overall Length
101.2 in (2,571 mm)
Overall Width
39.4 in (1,000 mm)
Rake/Trail
25° / 5.9 in (150 mm)
Seat Height (Laden)
26.0 in (660 mm)
Weight (Empty Tank / Full of Fuel)
828 lbs / 860 lbs (376 kg / 391 kg)
Wheelbase
65.7 in (1,669 mm)

Brakes

Front Brakes
Dual / 300 mm Floating Rotor / 4 Piston Caliper
Rear Brakes
Single / 300 mm Floating Rotor / 2 Piston Caliper

Tires / Wheels

Front Tires
Dunlop® Elite 3 130/90B16 73H
Front Wheel
Cast 16 in x 3.5 in
Rear Tires
Dunlop® Elite 3 Multi-Compound 180/60R16 80H
Rear Wheel
Cast 16 in x 5 in

Suspension

Front Fork Tube Diameter
46 mm
Front Suspension
Telescopic Fork
Front Travel
4.7 in (119 mm)
Rear Suspension
Single Shock w/ Air adjust
Rear Travel
4.5 in (114 mm)

Features

Color / Graphics
Wildfire Red over Thunder Black
Gauges
Fairing mounted instrument cluster featuring analog speedometer and tachometer, with fuel gauge, range, odometer and current gear. 15 LED telltale indicators; cruise control enabled, cruise control set,neutral, high beam, turn signal, ABS, check engine, low tire pressure, battery, low fuel, security system, low engine oil pressure and MPH or Km/H unit designation.
Lights
N/A
Ride Command™
7" Touchscreen including realtime clock; ambient air temperature; heading; audio information display; vehicle trouble code readout; Vehicle Status (tire pressure, voltage, engine hours, oil change); Vehicle Info (speed, fuel range, RPM, gear position); Dual Trip Meters (fuel range, miles, average fuel economy, instantaneous fuel economy time, average speed); Ride Data (heading, moving time, stop time, altitude, altitude change); Bluetooth connectivity for phone and headset; Map/Navigation
Standard Equipment
ABS; Cast Aluminum Frame with Integrated Air-Box; Cruise Control; Driving Lights; Highway Bar; Keyless Start; Power Windshield; Desert Tan Genuine Leather Seats; Remote Locking Hard Saddle Bags; Tire Pressure Monitoring; 100 Watt Stereo with AM/FM, Bluetooth, USB, Smartphone Compatible Input, and Weatherband
