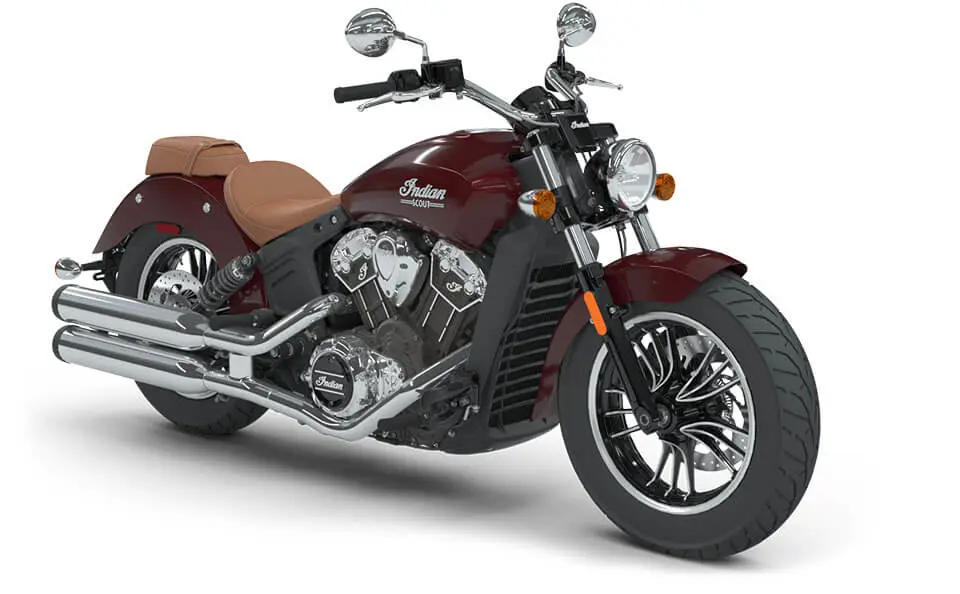

Indian Scout Burgundy Metallic

Engine & Drivetrain

Bore x Stroke
3.898 in x 2.898 in (99 mm x 73.6 mm)
Compression Ratio
10.7:1
Displacement
69 cu in (1,133 cc)
Drive/Driven Clutch
Wet, multi-plate
Electronic Fuel Injection System
Closed Loop Fuel Injection / 60 mm Bore
Engine Type
Liquid Cooled V-Twin
Exhaust
Split Dual Exhaust w/ Cross-over
Gear Ratio (1st)
10.926 : 1
Gear Ratio (2nd)
7.427 : 1
Gear Ratio (3rd)
5.918 : 1
Gear Ratio (4th)
5.022 : 1
Gear Ratio (5th)
4.439 : 1
Gear Ratio (6th)
4.087 : 1
Horsepower
100 HP
Peak Torque
72 ft-lbs (97.7 Nm)
Peak Torque RPM
6,000 rpm
Transmission/Final Drive
2.357 : 1
Transmission/Primary Drive
Gear Drive Wet Clutch

Dimensions

Fuel Capacity
3.3 gal (12.5 L)
Ground Clearance
5.3 in (135 mm)
GVWR
988 lb (449 kg)
Lean Angle
31°
Overall Height
47.5 in (1,207 mm)
Overall Length
91 in (2,311 mm)
Overall Width
34.6 in (880 mm)
Rake/Trail
29° / 4.7 in (120 mm)
Seat Height (Laden)
25.3 in (643 mm)
Weight (Empty Tank / Full of Fuel)
528 lbs / 550 lbs (239 kg / 249 kg)
Wheelbase
61.5 in (1,562 mm)

Brakes

Front Brakes
Single / 298 mm Rotor / 2 Piston Caliper
Rear Brakes
Single / 298 mm Rotor / 1 Piston Caliper

Tires / Wheels

Front Tires
130/90B16 67H
Front Wheel
Cast 16 in x 3.5 in
Rear Tires
150/80B16 77H
Rear Wheel
Cast 16 in x 3.5 in

Suspension

Front Fork Tube Diameter
41 mm
Front Suspension
Telescopic Fork - Cartridge Type
Front Travel
4.7 in (119 mm)
Rear Suspension
Dual Shocks
Rear Travel
3.0 in (76 mm)

Features

Color / Graphics
Burgundy Metallic
Gauges
Digital tachometer, odometer, trip meter, engine temp, and low fuel lamp
Infotainment
N/A
Lights
Headlight, tail/brake light, turn signals, license plate light, speedometer and indicator lights
Standard Equipment
N/A
