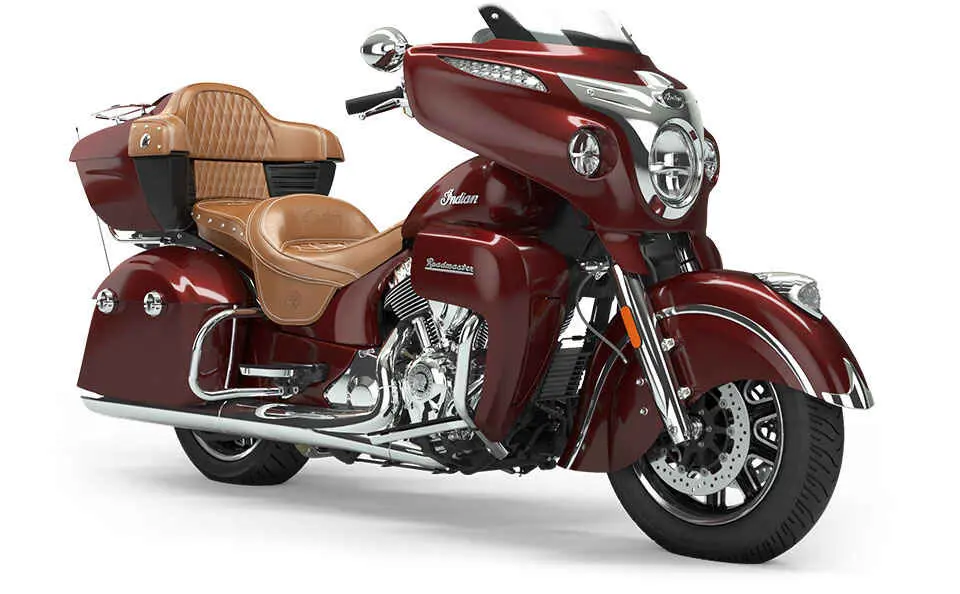

Indian Roadmaster Burgundy Metallic

ENGINE & DRIVETRAIN

Bore x Stroke
3.976 in x 4.449 in (101 mm x 113 mm)
Compression Ratio
9.5:1
Displacement
111 cu in (1,811 cc)
Drive/Driven Clutch
Wet, Multi-Plate
Electronic Fuel Injection System
Closed loop fuel injection / 54 mm bore
Engine Type
Thunderstroke 111
Exhaust
Split Dual Exhaust w/ Cross-over
Gear Ratio (1st)
9.403 : 1
Gear Ratio (2nd)
6.411 : 1
Gear Ratio (3rd)
4.763 : 1
Gear Ratio (4th)
3.796 : 1
Gear Ratio (5th)
3.243 : 1
Gear Ratio (6th)
2.789 : 1
Horsepower
N/A
Peak Torque
119 ft-lb (161.6 Nm)
Peak Torque RPM
3,000 rpm
Transmission/Final Drive
2.2 : 1
Transmission/Primary Drive
Gear Drive Wet Clutch

DIMENSIONS

Fuel Capacity
5.5 gal (20.8 L)
Ground Clearance
5.5 in (140 mm)
GVWR
1,385 lbs (628 kg)
Lean Angle
31°
Overall Height
58.7 in (1,491 mm)
Overall Length
104.6 in (2,656 mm)
Overall Width
39.4 in (1,000 mm)
Rake/Trail
25° / 5.9 in (150 mm)
Seat Height (Laden)
26.5 in (673 mm)
Weight (Empty Tank / Full of Fuel)
888 lb (403 kg) / 920 lb (418 kg)
Wheelbase
65.7 in (1668 mm)

BRAKES

Front Brakes
Dual / 300mm floating rotor / with 4-piston calipers
Rear Brakes
Single / 300 mm Floating Rotor / 2 Piston Caliper

TIRES / WHEELS

Front Tires
Dunlop® Elite 3 130/90B16 73H
Front Wheel
Cast 16 in x 3.5 in
Rear Tires
Dunlop® Elite 3 Multi-Compound 180/60R16 80H
Rear Wheel
Cast 16 in x 5 in

SUSPENSION

Front Fork Tube Diameter
46 mm
Front Suspension
Telescopic Fork - Cartridge Type
Front Travel
4.7 in (119 mm)
Rear Suspension
Single Shock w/ Air adjust
Rear Travel
4.5 in (114 mm)

FEATURES

Color / Graphics
Burgundy Metallic
Factory Warranty
2 Years, Unlimited Miles
Gauges
Fairing-mounted instrument cluster featuring analog speedometer and tachometer with fuel gauge, range, odometer and current gear. 15 LED telltale indicators; cruise control enabled, cruise control set, neutral, high beam, turn signal, ABS, check engine, low tire pressure, battery, low fuel, security system, low engine oil pressure and MHP or km/h unit designation.
Infotainment
7" Ride Command® touchscreen display with real-time clock; ambient air temperature; heading; audio information display; vehicle trouble code readout; Vehicle Status (tire pressure, voltage, engine hours, oil change); Vehicle Info (speed, fuel range, RPM, gear position); Dual Trip Meters (fuel range, miles, average fuel economy, instantaneous fuel economy time, average speed); Ride Data (heading, moving time, stop time, altitude, altitude change); Bluetooth Status for phone and headset; Ride Mode Selection; Map/Navigation
Lights
Pathfinder LED Lights (headlight, driving lights, turn signals, trunk light, tail light, and headdress fender light)
Standard Equipment
7" Ride Command® Touchscreen Display with Navigation; Power Windshield; Driving Lights; Highway Bars; Genuine Leather Seats (Separate Rider/Passenger Heat Controls); Heated Grips; Adjustable Passenger Floorboards; 36.2 Gallons of Storage; Tire Pressure Monitoring; Remote-locking Hard Saddlebags & Trunk; Selectable Ride Modes; Rear Cylinder Deactivation; ABS; Cruise Control; Keyless Ignition; 200 Watt Audio System with AM/FM, Bluetooth, USB, Smartphone Compatible Input, and Weatherband
