INDIAN SPRINGFIELD DARK HORSE SPECIFICATIONS

Find specifications below for the 2025 Indian Springfield Dark Horse Motorcycle. Specs include displacement, engine type, torque, fuel capacity, seat height, wheelbase, height, weight, length, brakes, suspension, gauges, color options and standard equipment.

Engine & Drivetrain

Bore x Stroke
4.063 in x 4.449 in (103.2 mm x 113 mm)
Compression Ratio
11.0 : 1
Displacement
116 cu in (1,890 cc)
Drive/Driven Clutch
Wet, Multi-Plate, Assist
Electronic Fuel Injection System
Closed loop fuel injection / 54 mm bore
Engine Type
Air-cooled Thunderstroke 116
Exhaust
Split Dual Exhaust w/ Cross-over
Gear Ratio (1st)
9.403 : 1
Gear Ratio (2nd)
6.411 : 1
Gear Ratio (3rd)
4.763 : 1
Gear Ratio (4th)
3.796 : 1
Gear Ratio (5th)
3.243 : 1
Gear Ratio (6th)
2.789 : 1
Peak Torque
126 ft-lbs
Peak Torque RPM
2,900 rpm
Transmission/Final Drive
2.2 : 1
Transmission/Primary Drive
Gear Drive Wet Clutch

Dimensions

Fuel Capacity
5.5 gal (20.8 L)
Ground Clearance
5.1 in (130 mm)
GVWR
1,385 lbs (628 kg)
Lean Angle
31°
Overall Height
48.3 in (1226 mm)
Overall Length
99.3 in (2,522 mm)
Overall Width
38.3 in (972 mm)
Rake/Trail
25° / 5.2 in (133 mm)
Seat Height
26.5 in (673 mm)
Weight (As Shipped / Running Order)
753 lbs (342 kg) / 776 lbs (352 kg)
Wheelbase
67.0 in (1,701 mm)

Brakes

Front Brakes
Dual / 300 mm Floating Rotor / 4 Piston Caliper
Rear Brakes
Single / 300 mm Floating Rotor / 2 Piston Caliper

Tires / Wheels

Front Tires
Metzeler® Cruisetec® 130/60B19 66H
Front Wheel
Machined Highlights, Tour 17" x 3.5"
Rear Tires
Metzeler® Cruisetec® 180/60R16 80H
Rear Wheel
Machined Highlights, Tour 16" x 5"

Suspension

Front Fork Tube Diameter
46 mm
Front Suspension
Telescopic Fork
Front Travel
4.7 in (119 mm)
Rear Suspension
Single Shock w/ Air adjust
Rear Travel
4.5 in (114 mm)

Features

Color / Graphics
Black Smoke, Moss Green Smoke
Factory Warranty
2 Years, Unlimited Miles
Gauges
4" Analog Gauge with Speedometer, Indicator Lamps, and Multi-Function Display
Infotainment
N/A
Lights
LED Headlamp/Driving, LED Tail/Brake/Turn Signal
Standard Equipment
Remote-Locking Hard Saddlebags, Vinyl Rogue Seat; Tire Pressure Monitoring; Light Bar; ABS, Selectable Ride Modes; Cruise Control; Keyless Ignition
116 Cu-In
Engine Size
126 ft-lbs
Torque
6 Speed
Transmission

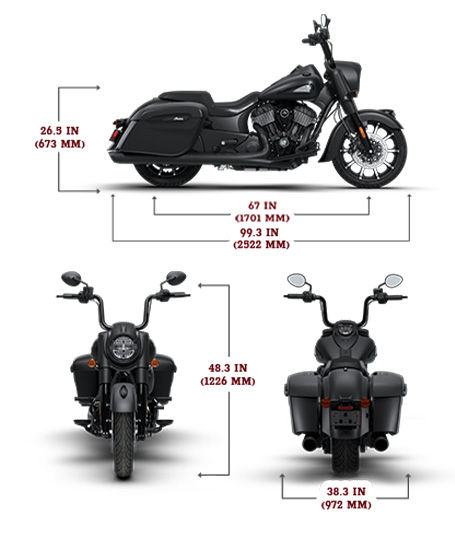

Side, front, and rear view of the 2025 Indian Springfield Dark Horse with height, width and length dimensions.
